Wi-Fi Activator Key
This key is used to activate the Wi-Fi access point, enabling the sensor to be accessed through any web browser. This allows for downloading the data log stored in the sensor's internal memory.

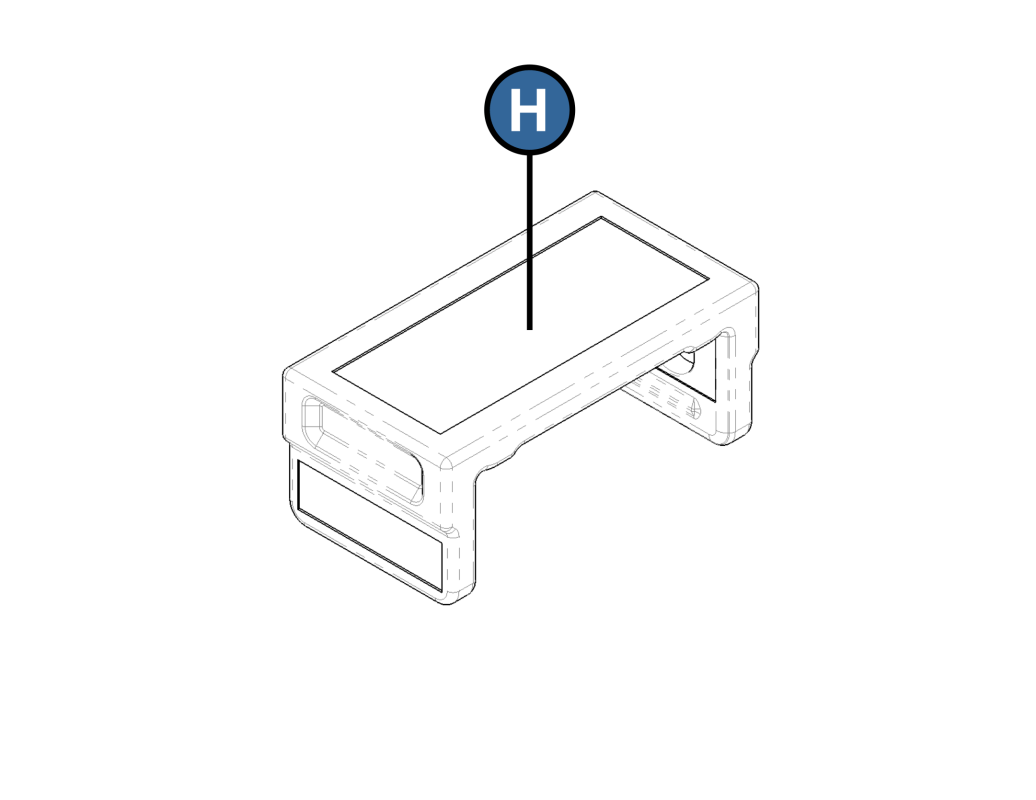

H - Top Label
Everything you need to know about our Wi-Fi Activator
This key is used to activate the Wi-Fi access point, enabling the sensor to be accessed through any web browser. This allows for downloading the data log stored in the sensor's internal memory.
H - Top Label
Learn the location of the essential hardware features on the Sensor (1st generation).
A - Wi-Fi Activator Key Slot
B - SnapBase® Locking Recess
C - Green LED for Power Indication
D - Power Connector (IP67 Grade)
E - Blue LED for Data Acquisition
F - Capacitive Power Switch
G - Top Label with User Guide QR-Code and the Axis Indicator
To access the stored data, you will need to install the "Wi-Fi Security Key" (Item H), which enables the sensor's Wi-Fi access point. The SSID and password information can be found on the sensor's bottom label.
Each sensor has a unique Wi-Fi network that can only be accessed with the security key. Each sensor comes with one key. If you lose or need another key, you can request one through this link.
Once the key is properly connected to the sensor, with the texts aligned between the sensor and the key, connect to the sensor's Wi-Fi network using a laptop, tablet, or smartphone.
The default password is 12345678 and can be changed in the config.txt file located in the root of the sensor's internal memory.
Remember to observe the Wi-Fi network access permissions of the respective operating systems used. Permissions for each operating system are not covered in this tutorial.
(End of the User Guide)
